Reer JANUS M TRX

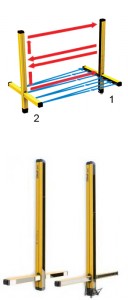

TYPE 4 LIGHT GRID WITH MUTING AND PASSIVE RETRO-REFLECTOR ELEMENT14481711_WEB_Janus_M_TRX1

[button text=”Download PDF” link=”http://www.iacnassociates.com/wp-content/uploads/2014/08/REER-JANUS.pdf” style=”default” size=”normal” target=”_blank”]

Type 4 safety light grid for access control, composed by an active element (emitter + receiver) and by a passive element (with retro-reflector) which needs no electrical connection.

Built-in Muting function in all the models.Ideal for palletiser applications.

=> Operating temperature from -10°C to +55°C

=> MJB connection boxes available

Conforming to:

– 2006/42/CE Machinery Directive
– 2004/108/CE Electromagnetic
Compatibility Directive (EMC)
– 2006/95/CE Low Voltage
Directive (LVD)
– IEC/EN 61496-1 Ed. 2.1 Safety
of machinery – Electro-sensitive
protective equipment- General
requirements and tests
– IEC/TS 61496-2 Ed. 2 Safety of
machinery- Electro-sensitive
protective equipment –
Part 2:Particular requirements
for equipment using Active
Optoelectronic Protective
Devices
– EN ISO 13849-1 Safety of
machinery – Safety-related
parts of control systems –
Part 1: General principles
for design.
– IEC/EN 62061 Safety of
machinery – Functional
safety of safety-related
electrical, electronic and
programmable electronic
control systems
– IEC 61508 Functional safety
of electrical/electronic /
programmable electronic
safety-related systems.
– UL (C+US) for USA and Canada
– ANSI / UL 1998 Software in
Programmable Components.

Available Models:

Janus MI TRX and MI TRXL is composed of an active element and of a passive retro-reflector element requiring no wiring.
It features dedicated connections for connecting external muting sensors of any type such as photocells, proximity sensors, limit switches, etc.
The MI series can manage the muting function in both two-way and one-way mode. Models with 2 – 3 – 4 beams provide the solution to any application problem in access control.
The Models MI TRX uses front M12 connectors for external Muting sensors. Operating logic with 2 or 4 sensors.
The models MI TRXL uses single M23 connector for external Muting sensors. Operating logic with 2 sensors.

Janus ML TRX, ML TRX G and ML TRX V, with 2 or 3 beams for detecting the presence of a person, uses an original system of horizontal arms (one for the emitter and one for the receiver) with built-in, pre-wired and pre-aligned, photoelectric muting sensors which do not require any adjustment.
The ML TRX series manages the muting function in one-way mode and is particularly suitable for protecting the outfeed gates of palletising systems.
ML TRX G models especially conceived for the palletisation of transparent materials
ML TRX V models with longer built-in muting arms available for high-speed conveyors.

Janus MT TRX, MT TRX G and MT TRX V features four horizontal arms (two for the emitter and two for the receiver) with built-in pre-wired and pre-aligned photoelectric muting sensors that do not require any adjustment.
The MT TRX series manages the muting function in two-way mode for the protection of the infeed/outfeed gates in palletising systems.
MT TRX G models especially conceived for the palletisation of transparent materials
MT TRX V models with longer built-in muting arms available for high-speed conveyors.

Janus MM TRX is a modular system with 2, 3 and 4 beams which permits to add pre-wired muting arms in order to get either a ML TRX (one way) or a MT TRX (entry/exit) model with a few simple steps.
SL TRX and ST TRX are the pre-wired muting arms and can be ordered separately.
Muting logics for models MM TRX are one-way (only exit), together with SL TRX, and two-way (entry/exit) together with SL TRX and ST TRX.
Janus MM TRX can also be used with external Muting sensors, with 2 or 4 sensors logic.

Technical Specifications:

– Maximum working range: see Technical Detail Table
– Power supply 24Vcc ± 20%
– Two safe static PNP outputs with short circuit protection
– M23 connector for active element only
– Controlled output for Muting activated indicator light
– Display for auto-diagnostics of malfunctioning or faults
– Built-in user-selectable manual or automatic restart
– Additional Muting Enable safety input
– Built-in External Devices Monitoring
– User selectable maximum Muting time-out function
– Built-in Override function, with time-out
– 1 PNP output to indicate barrier status and weak signal
– Barrier status, Muting sensor and configurations indicator LEDs
– Muting sensors with retro-reflector and polarised infra-red light

Ideal for the protection of:

– Palletizers
– Robotized areas
– Assembly lines
– Automatic industrial warehouses
– Areas through which AGV automatically guided vehicles pass
