TYPE 4 SAFETY LIGHT GRID WITH LONG RANGE
Optoelectronic Safety Barrier for the protection of workers exposed to risks arising from the use of dangerous machines. MUTING models available (M models).
Maximum working range: 80 metres.
Complying with the requirements of the European Standard EN 61496-1 and the International Standard IEC 61496-1-2.
LAD 3 laser alignment device available

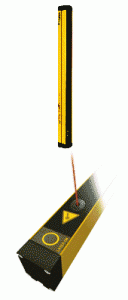

The versions of the JANUS J LRH M12 ILP light curtain have a laser light tracking system in order to speed up and improve the alignment emitter/receiver.
These models are designed for use with floor mounting columns FMC.
Conforming to:
– 2006/42/CE “Machinery Directive”
– 2004/108/CE “Electromagnetic Compatibility Directive
(EMC)”
– 2006/95/CE “Low Voltage Directive (LVD)”
– IEC/EN 61496-1 Ed. 2.1 “Safety of machinery – Electro-
sensitive protective equipment – General requirements
and tests”
– IEC/TS 61496-2 Ed. 2 “Safety of machinery- Electro-
sensitive protective equipment – Part 2:Particular
requirements for equipment using Active
Optoelectronic Protective Devices”
– EN ISO 13849-1 “Safety of machinery – Safety-related
parts of control systems – Part 1: General principles
for design”.
– IEC/EN 62061 “Safety of machinery – Functional safety
of safety-related electrical, electronic and programmable
electronic control systems”
– IEC 61508 “Functional safety of electrical/electronic/
programmable electronic safety-related systems”
– UL (C+US) for USA and Canada
– ANSI / UL 1998 “Software in Programmable Components”.
Available Models: 4
– J LR multibeam models
– J LR 40 mm models
– J LRH M12 multibeam models
– J LRH M12 multibeam with integrated laser pointer
– M LR multibeam models with muting
– M LR 40 mm models with muting
Technical Specifications:
– Scanning distance 8 – 60 m
(J LRH M12 models, scanning distance: 8- 80 m)
– Power supply 24Vcc ± 20%
– Feedback input for the control of the final switching devices ( FSD )
– Selecteble manual or automatic reset
– Correct alignment and fault diagnosis indicator Led´s
– Fit for the realization of perimeter protections along up to 4 sides through the floor
mounting columns for barriers and mirrors series FMC
Ideal for the protection of:
– Automatic punching machines
– Shear lines
– Robotized areas
– Assembly lines
– Palletising system
